Parameters | Typical value | Max value | Unit | |
Full scale output | 100 | 250 | mV | |
Zero output | ± 1 | ± 2 | mV | |
Nonlinearity | 0.2 | 0.5 | %FS | |
Hysteresis | 0.05 | 0.08 | %FS | |
Repeatability | 0.05 | 0.08 | %FS | |
Input / output impedance | 2.6 | 5.0 | kΩ | |
Zero temperature drift (note 1) | ±0.4 | ±1.0 | %FS, @25℃ | |
Sensitivity temperature drift (note 2) | ±0.4 | ±1.0 | %FS, @25℃ | |
Long-term stability | 0.2 | 0.3 | %FS / year | |
Excitation current | 1.5 (the maximum input voltage can be 10V) | mA | ||
Insulation resistance | 500（100VDC） | MΩ | ||
Compensation temperature (note 3) | 0～50; -10～70 | ℃ | ||
Working temperature | -40～+125 | ℃ | ||
Storage temperature | -40～+125 | ℃ | ||
Response time | ≤1 | ms | ||

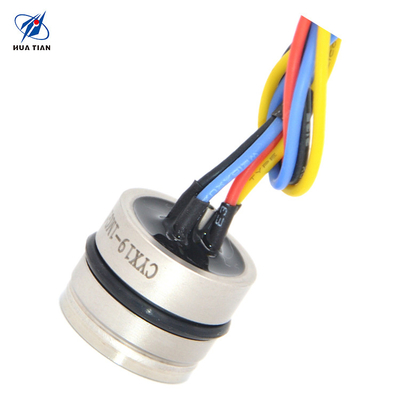

Housing and diaphragm material | stainless steel 316L | |||
O-ring | viton, nitrile rubber, silicone rubber | |||
Measuring medium | Fluids compatible with 316L, NBR or Viton or silicone | |||
Life (25 ℃) | ＞ 1 × 108 pressure cycle (80% FS) | times | ||
Filling medium | silicone oil | |||
Sealing ring | Φ 16 × 1.8mm (nitrile or fluorinated rubber (note 4)) | |||
IN + (red wire) - power supply positive | IN - (black wire) - power supply negative |
S + (yellow wire) - output positive | S - (blue wire) - output negative |
